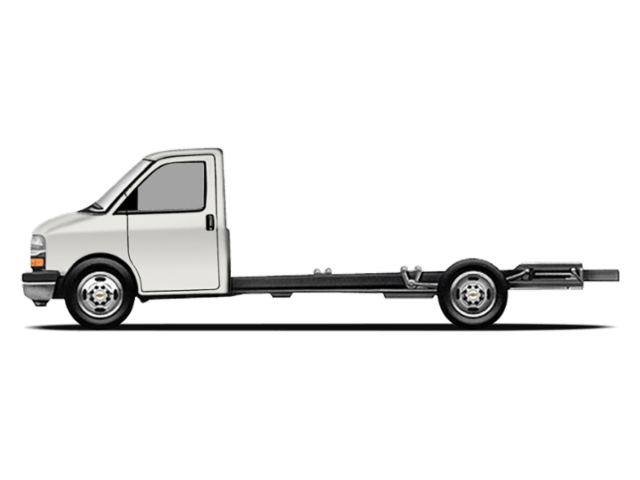

2013 Chevrolet Express 3500 Base

Vehicle Features

• Exterior

  • Tires, front LT225/75R16E all-season, blackwall (Requires (R05) dual rear wheel configuration.) Jack and spare tire equipment bracket are not included.
  • Tires, rear LT225/75R16E all-season, blackwall (Requires (R05) dual rear wheel configuration. Jack and spare tire equipment bracket are not included.)
  • Bumper, front painted Black with step-pad (Deleted when (ZR7) Appearance Package or (YF1) RV Package is ordered.)
  • Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
  • Flasher, heavy duty light emitting diode (LED), formerly known as SEO (8H9)
  • Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
  • Wipers, front intermittent wet-arm with pulse washers
  • License plate kit, front

• Interior

  • Cup holders, 3 on the engine console cover
  • Floor covering, Black rubberized-vinyl front
  • Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
  • Driver Information Center includes fuel range, average speed, oil life, fuel used, ice warning, engine hours, average fuel economy, tachometer and maintenance reminders.
  • Warning tones, headlamp on and key-in-ignition
  • Oil life monitor
  • Theft-deterrent system, vehicle, PASS-Key III
  • Heater and defogger with front and side window defoggers
  • Defogger, side windows
  • Headliner, cloth, over driver and passenger
  • Visors, driver and front passenger, cloth, padded
  • Assist handle, front passenger
  • Lighting, interior with dome light and door handle-activated switches

• Mechanical

  • Engine, Vortec 6.0L V8 (324 hp [241.6 kW] @ 4700 rpm, 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (Standard on the CG33903 models. Available on CG33503 or CG33803 model. Includes external oil cooler. Reference the Engine/Axle page for availability.)
  • Rear Axle, 3.73 Ratio (Standard on CG33803 model and CG33903 model. With CG33503 model, requires (9N2) 10,050 lbs. (4559 kg) GVWR or (C7N) 12,300 lbs. (5579 kg) GVWR or (YF2) Ambulance Package. Reference the Engine/Axle page for availability.)
  • Body, standard
  • Transmission oil cooler, external
  • Rear wheel drive
  • Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
  • Alternator, 145 amps
  • Frame, ladder-type
  • Incomplete vehicle certification
  • Suspension, front independent with coil springs and stabilizer bar
  • Suspension, rear hypoid drive axle with multi-leaf springs
  • Steering, power
  • Brakes, 4-wheel antilock, 4-wheel disc
  • Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
  • Exhaust, aluminized stainless-steel muffler and tailpipe

• Safety

  • Daytime Running Lamps
  • Brake/transmission shift interlock for automatic transmissions
  • Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owners Manual for more information.)

• Entertainment

  • Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers (Not available with (UM7) AM/FM stereo, (U1C) AM/FM stereo with CD player, (US8) AM/FM stereo with CD/MP3 player, (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UL5) radio delete.)
